Timber Structure Lab. by NCN | 2022, Japan
Timber Structure Lab.
–
NCN
2022, Japan

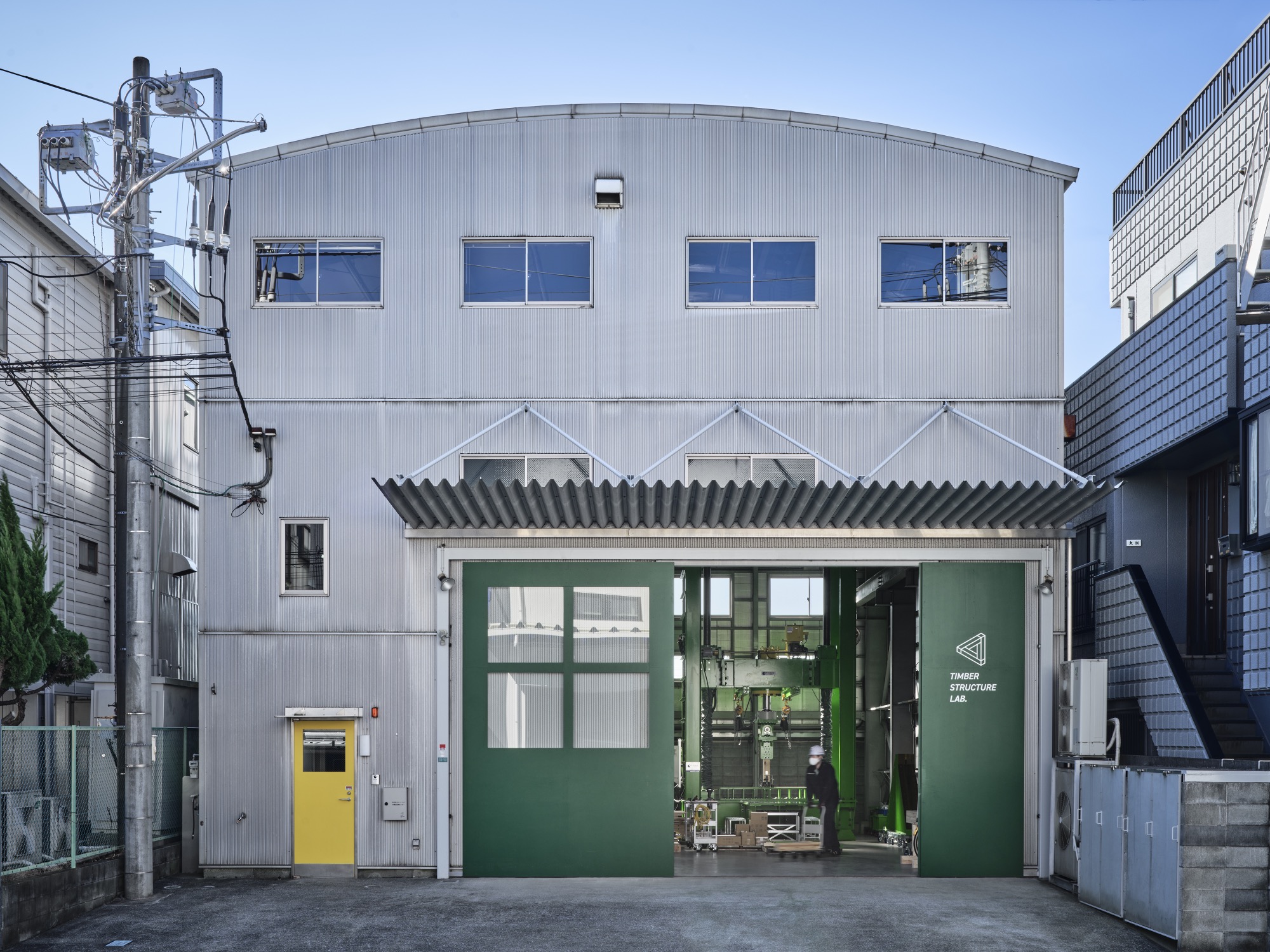

View form southwest
Two huge machines are set up.
Logotype "Safety Engineering"
Test body
The machine for strength testing of joints and components

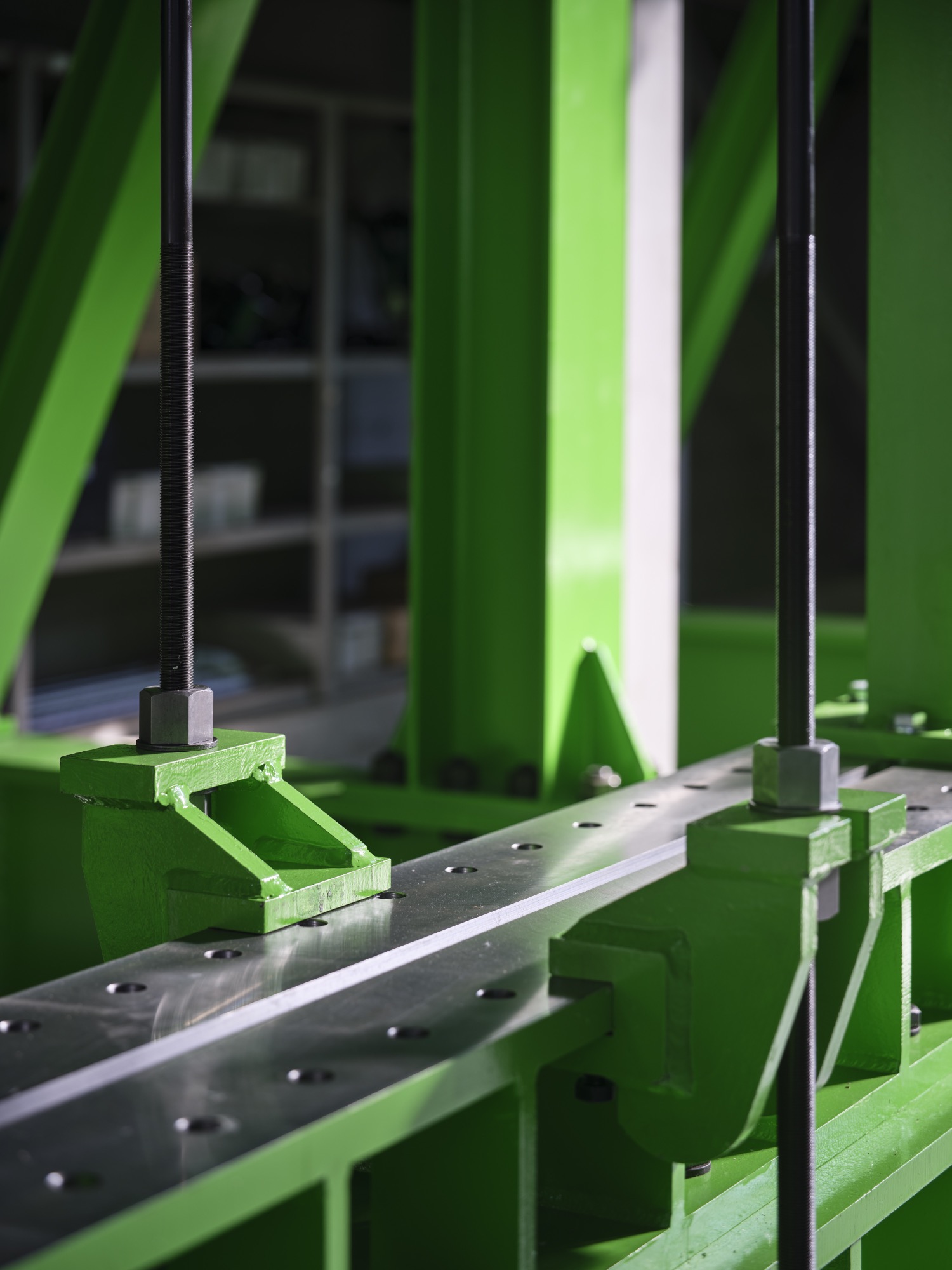

Machine parts
Observation

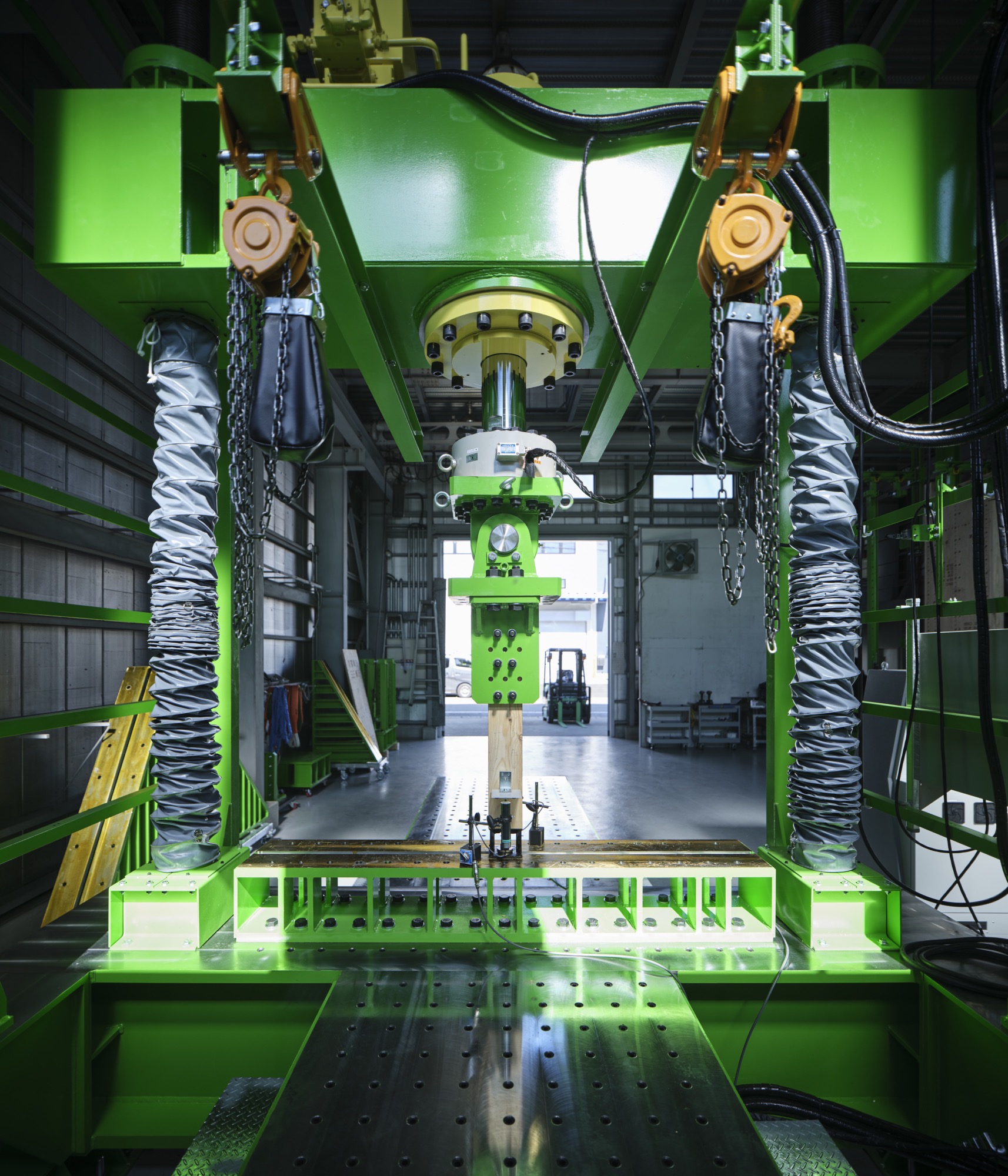

Preparation for strength testing of joints and components
The test body can be 2 m wide x 4.5 m deep x 2m tall.
The machine is capable of compression and tension
tests up to 1,000 kN (100 t).

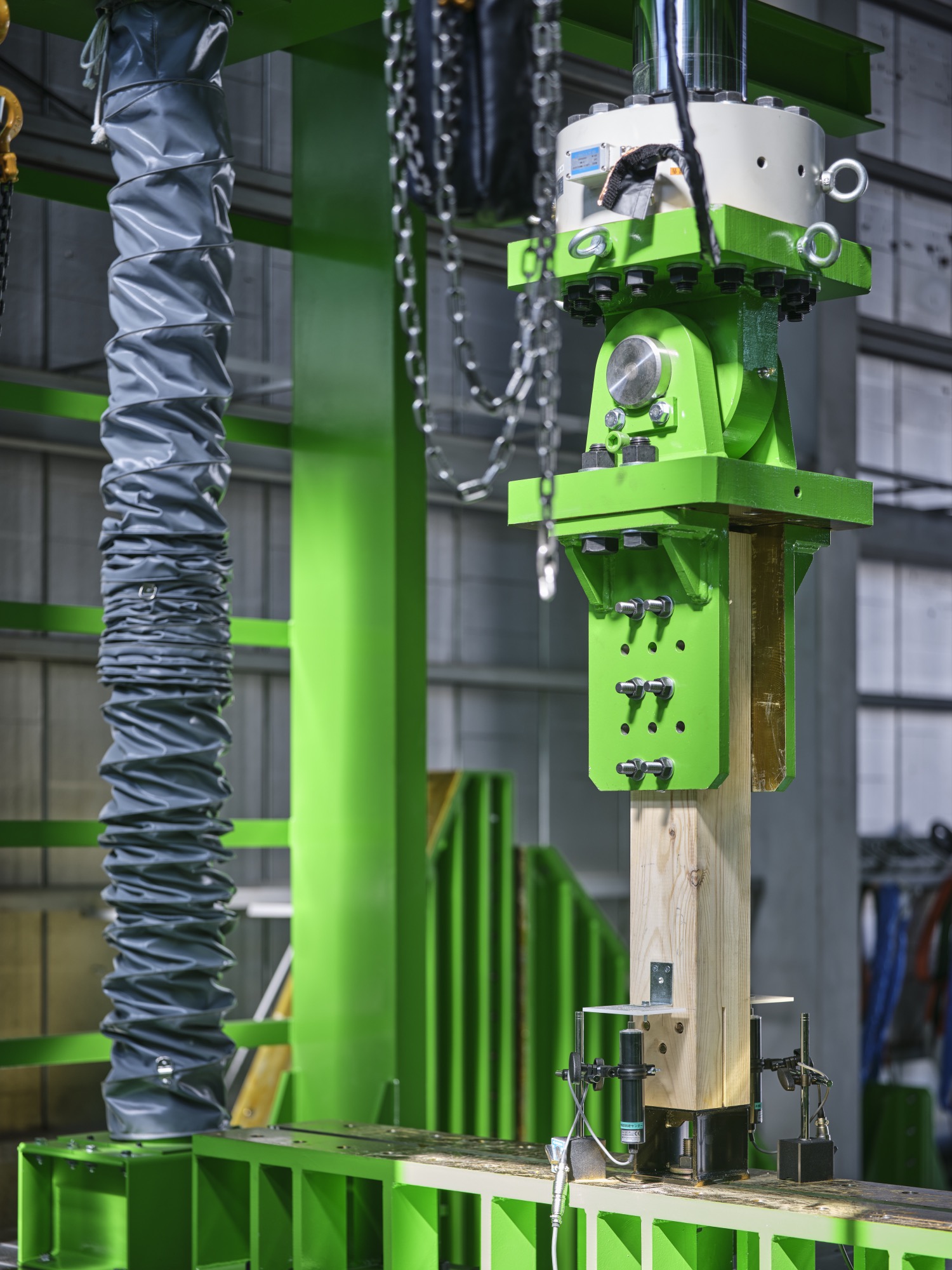

Under test
Machine parts
The computer running machines
Detail of in-plane shear testing machine
Preparation for in-plane shear testing
In-plane shear test
The test body can be 4.5 m wide by 3.5 m tall.
The machine is capable of horizontal force
tests up to 200 kN (20 t).

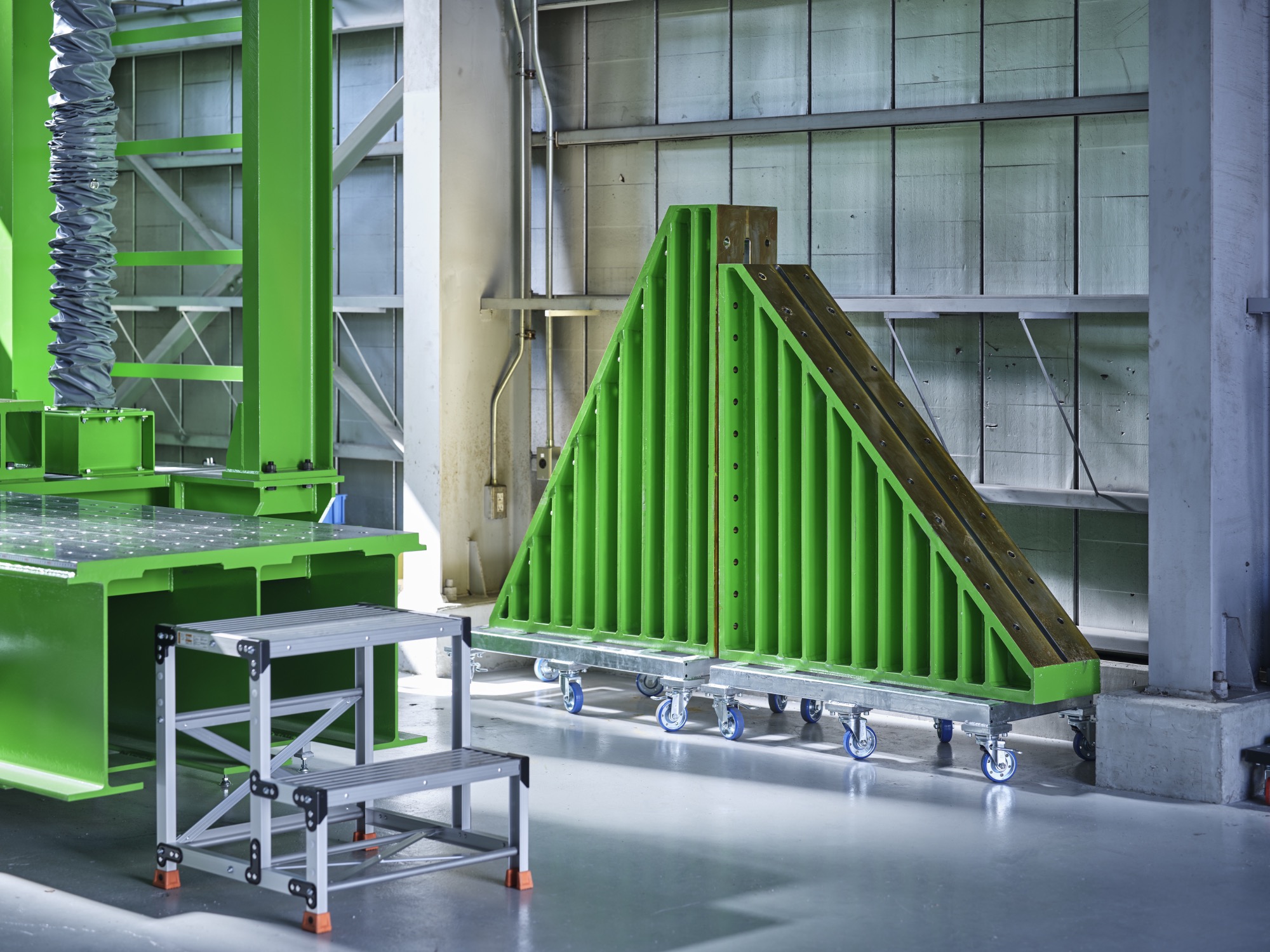

Machine parts

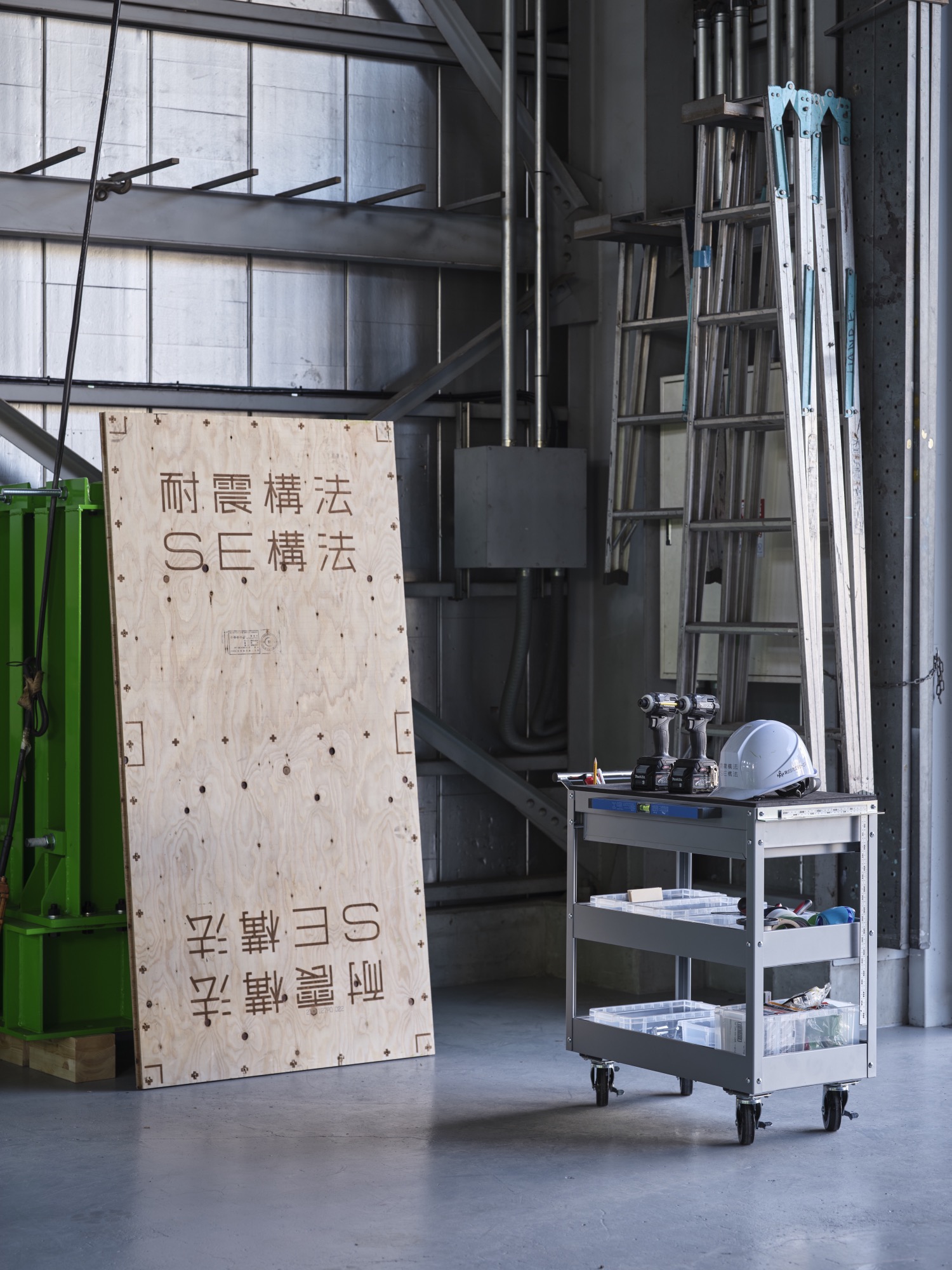

Shelves in the laboratory
Machine parts
Machine parts

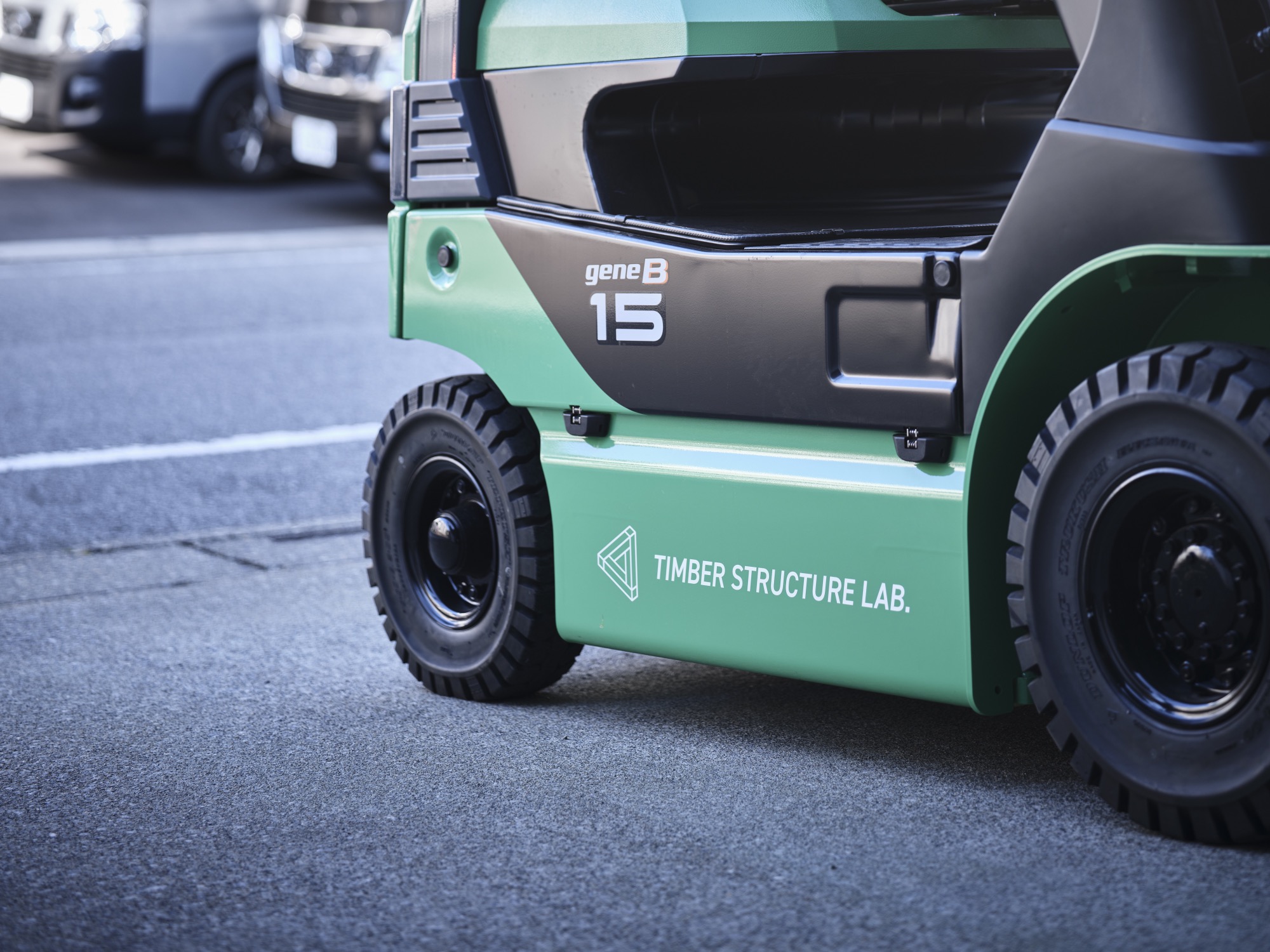

Forklift

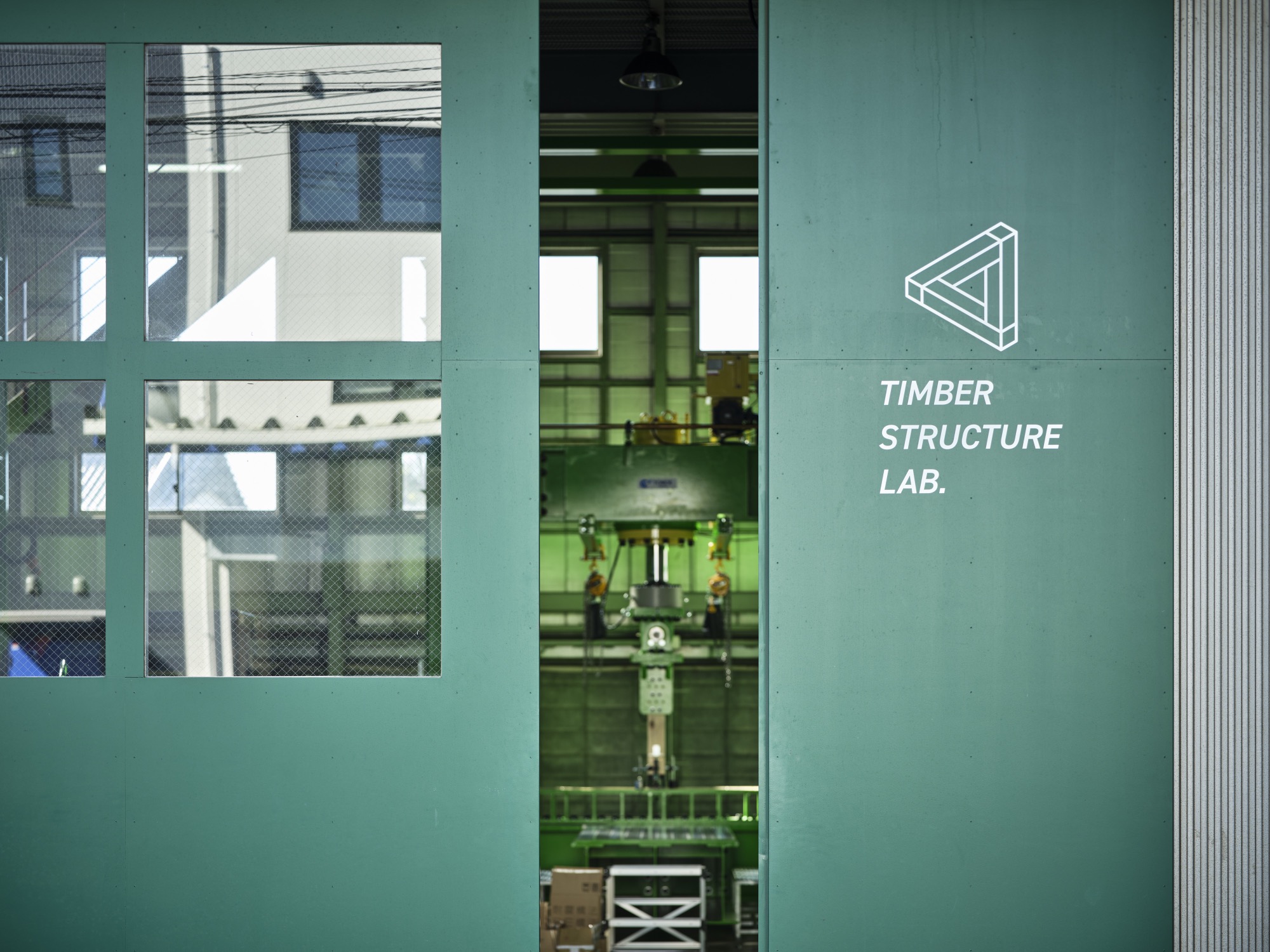

Logo on the door
View from north
